What Are Surface Mount Devices (SMD) Components?
Electronics manufacturing has undergone a dramatic shift: from slow, manual through-hole assembly to the speed and precision of surface mount technology (SMT). Instead of inserting leads through drilled holes, SMT places components directly onto surfaces of printed circuit boards (PCBs) using solder paste, automated pick and place equipment, and reflow soldering [1].
This shift aligns with the rise of Industry 4.0, where flexibility, automation, and data-driven optimization define the next generation of PCB assembly lines [2]. In this environment, surface-mount devices (SMDs) have become the standard. These components, which fall into passive and active categories, form the basis of nearly every modern circuit.
Passive SMD components
Passive SMD components form the foundational building blocks of electronic circuits, providing essential behaviors such as resistance, capacitance, and inductance for printed circuit boards. They are generally two-terminal devices in standardized rectangular or cylindrical packages.

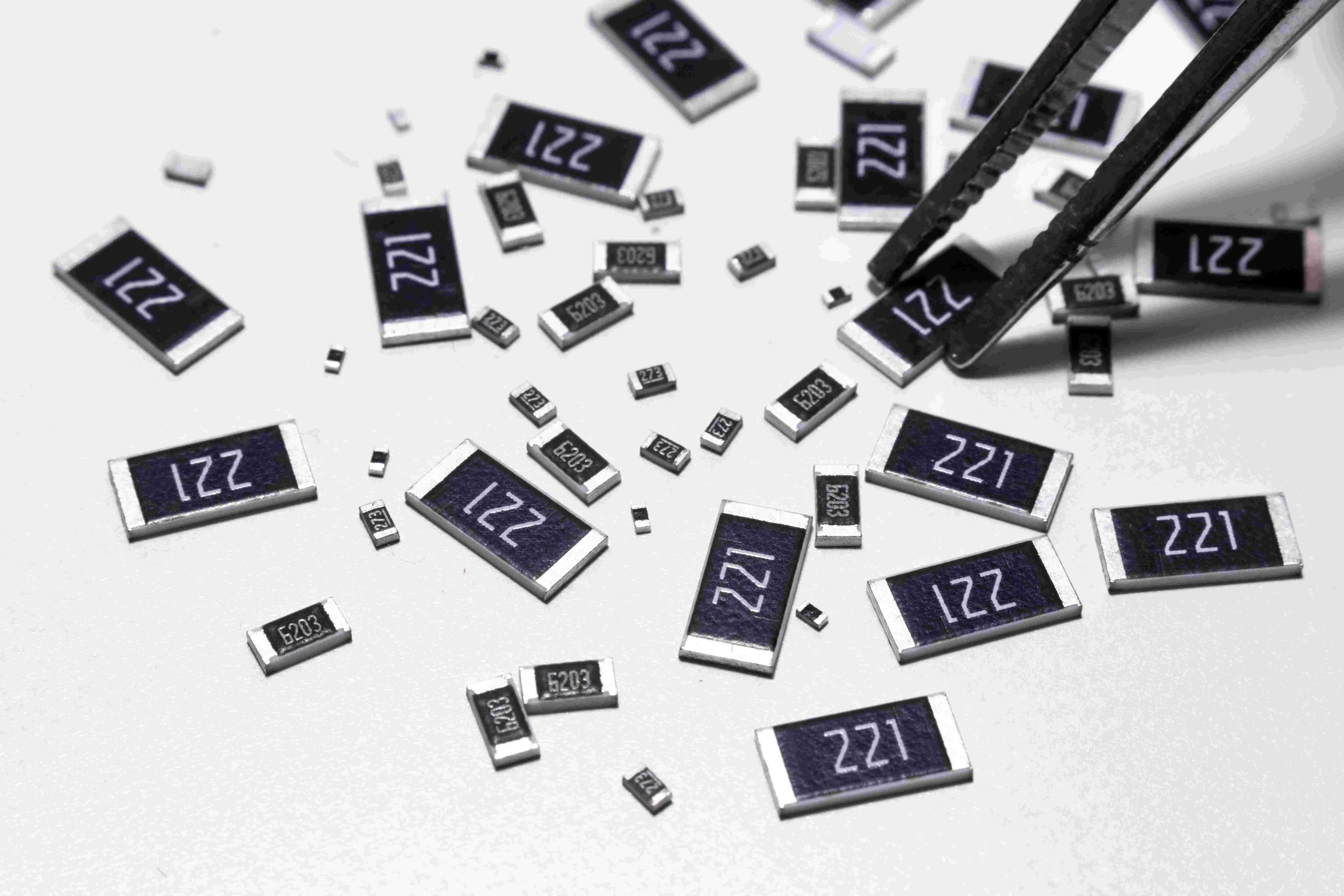

SMD resistors
SMD resistors provide precise resistance to control currents, divide voltages, or pull signals to logic levels. They are used in virtually every circuit for biasing transistors, setting gains of amplifiers, limiting LED current, termination of transmission lines, etc. SMD resistors come in standardized rectangular chip sizes, typically designated by a code for their dimensions.
| Package (imperial) | Dimensions (mm) | Typical power rating (W) |
|---|---|---|
| 0402 | 1.0 × 0.5 | ~0.063 |
| 0603 | 1.6 × 0.8 | ~0.1 |
| 0805 | 2.0 × 1.25 | 0.125–0.25 |
| 1206 | 3.2 × 1.6 | 0.25–0.5 |
| 1210 | 3.2 × 2.5 | ~0.5 |
| 1812 | 4.5 × 3.2 | ~0.75 |
| 2512 | 6.3 × 3.2 | ~1 |

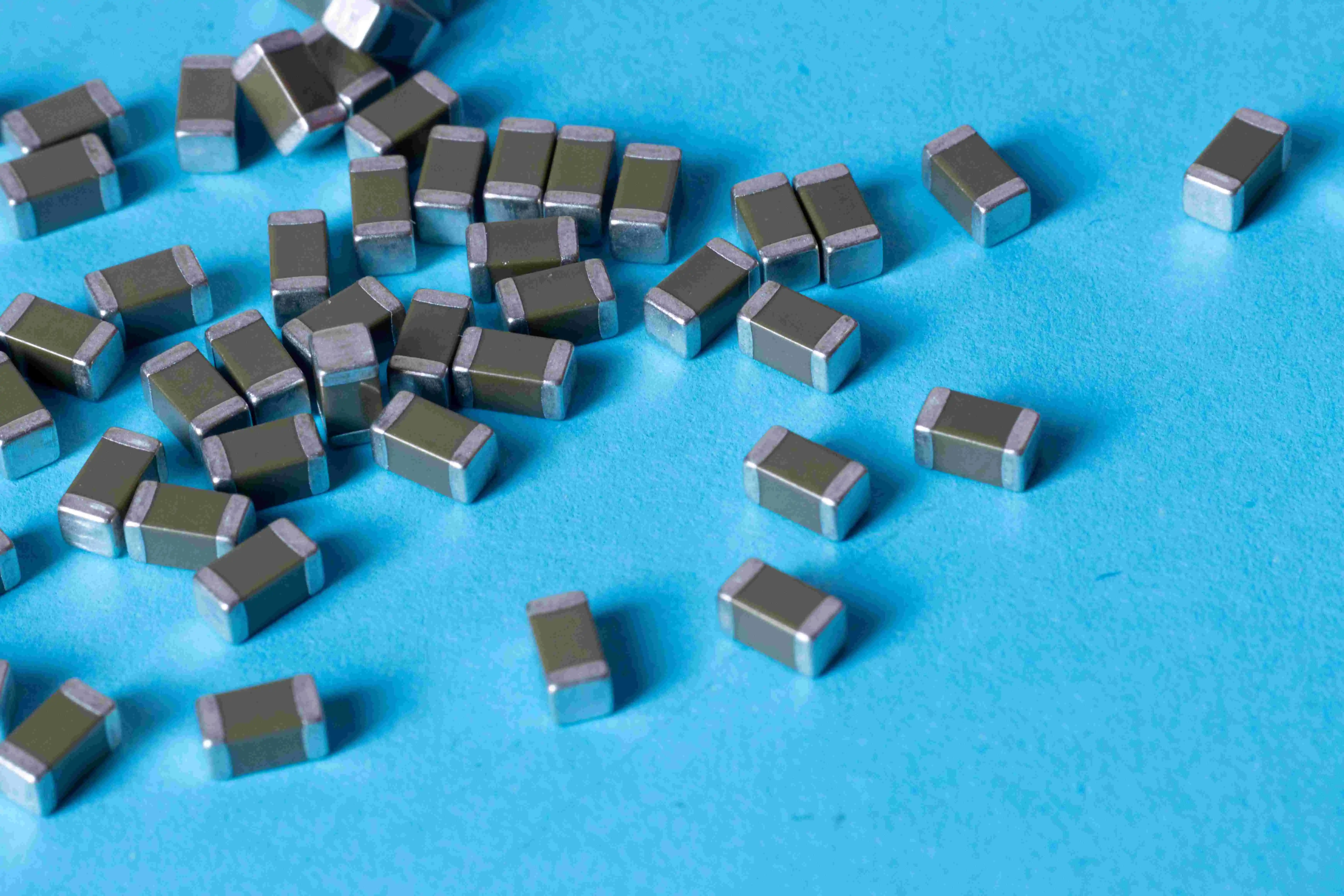

SMD capacitors
SMD capacitors store and release energy, filter noise, and stabilize voltages in circuits. They are used for power supply decoupling (smoothing out voltage rails), signal coupling/decoupling in analog circuits, timing elements, and frequency-dependent filters. Like resistors, SMD capacitors come in standardized chip sizes (0402, 0603, etc.) for ceramics, and slightly different case codes for tantalum/polymer.

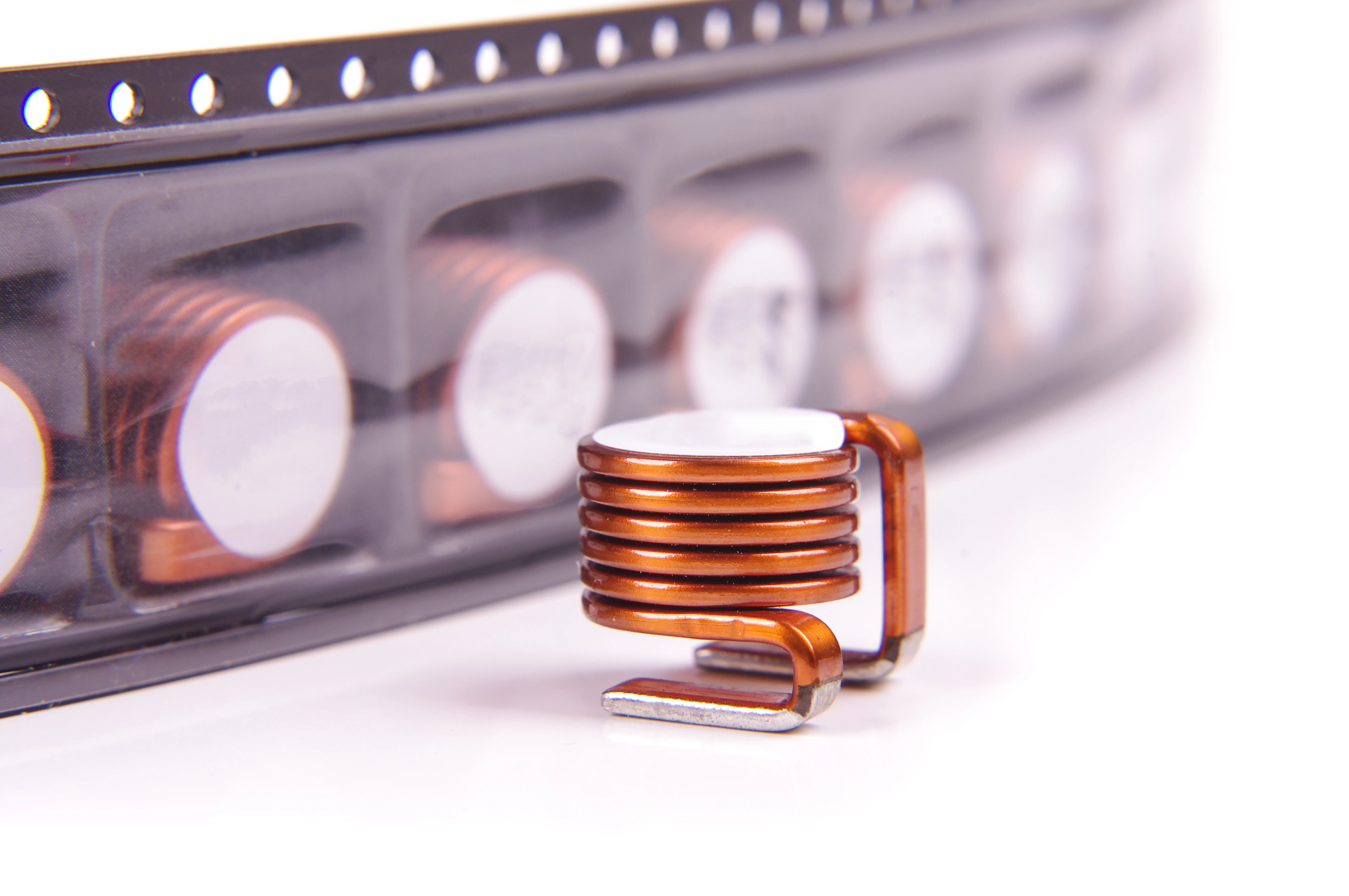

SMD inductors
Inductors in SMD form are used in power conversion, signal filtering, and in RF circuits. They store energy in a magnetic field and resist changes in current. SMD inductors use the same standardized physical size codes as resistors and capacitors. However, different construction types (e.g., wire-wound vs. multilayer) within the same size are not always interchangeable for all applications.
Active SMD components
While passive SMD components don’t provide gain or require a separate power rail to perform their basic function, active components require an external power source to operate and can control or amplify electrical signals. They are also widely available in SMD packages, but unlike passives, many active devices have leads or balls and require careful attention to the assembly processes.

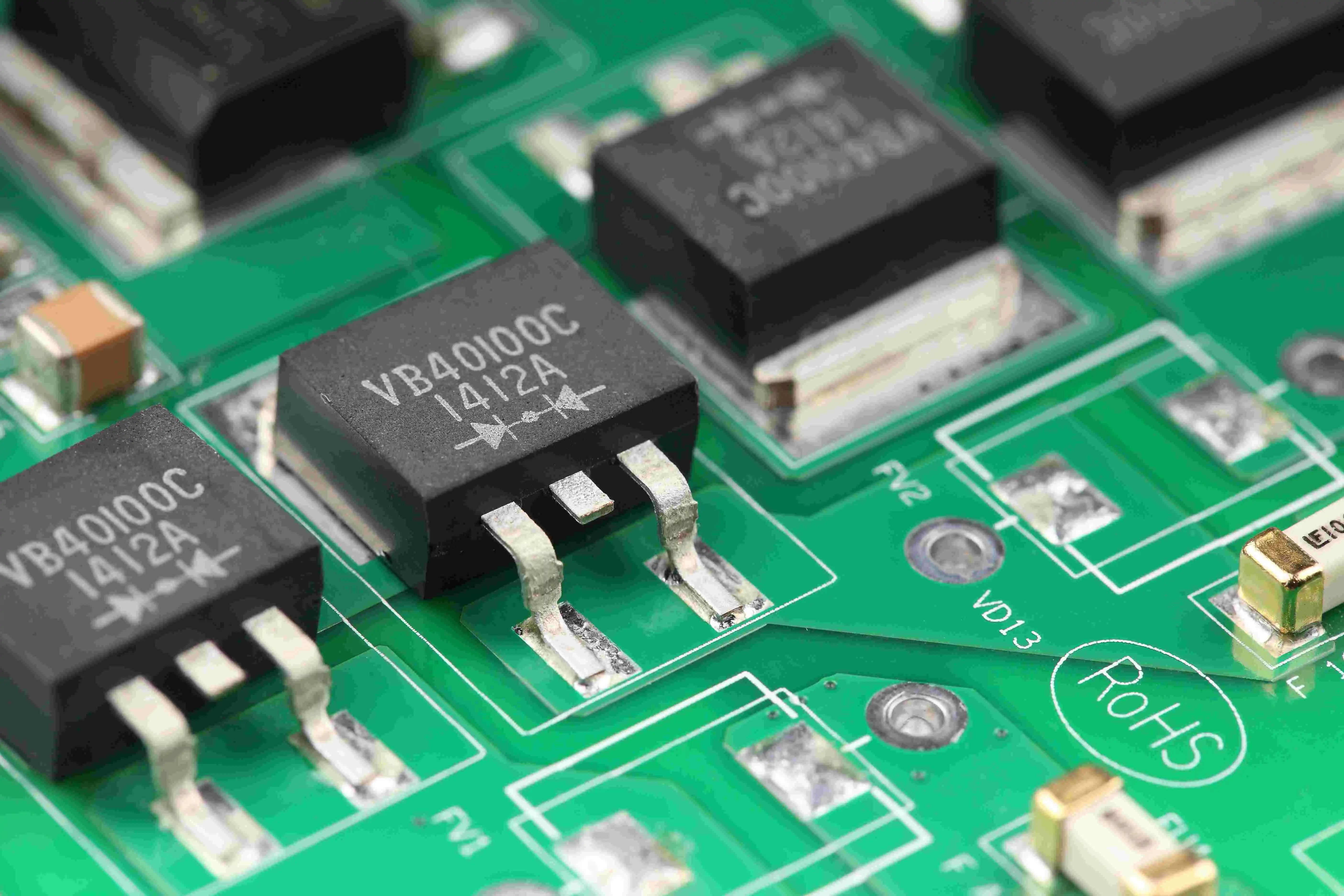

SMD diodes
SMD diodes include signal diodes, power rectifier diodes, Zener diodes, Schottky diodes, and transient voltage suppressors. Their usage ranges from steering currents and protecting circuits to rectifying AC to DC. Many diodes are two-terminal devices and thus come in very compact SMD packages. Common SMD diode package families include small outline diodes (SOD)-123, SOD-323, and SOD-523.

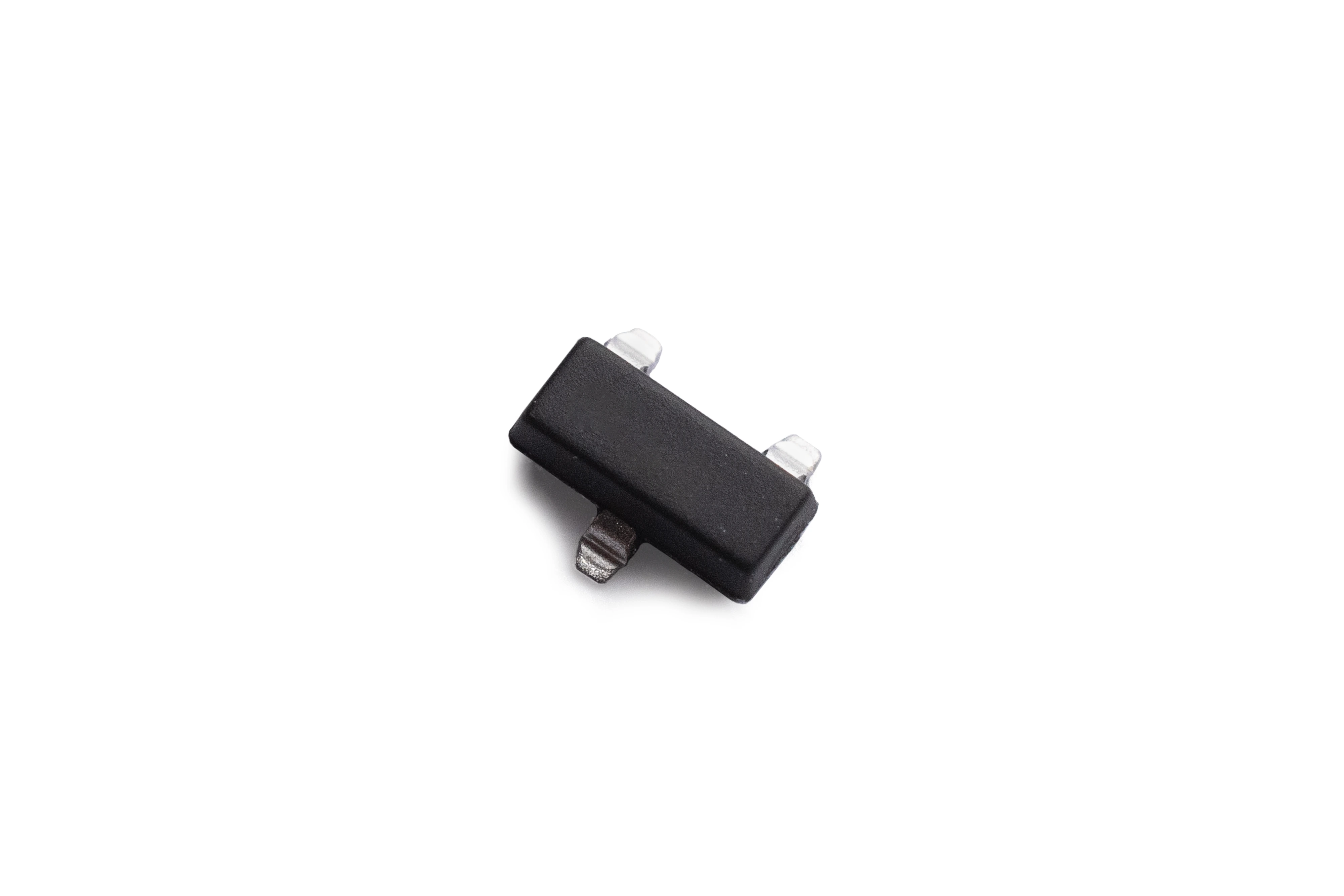

SMD transistors
Transistors are active devices used for switching and amplification. In SMD form, they range from tiny general-purpose transistors for logic-level switching or analog amplification, up to power metal-oxide-semiconductor field-effect transistors (MOSFET) that handle tens of amperes in DC-DC converters or motor drivers. The function of the transistor doesn’t change with packaging, but the package influences how much power it can handle and the switching speed. Common SMD transistor packages include small outline transistors (SOT)-23, SOT-223, SOT-323 etc.

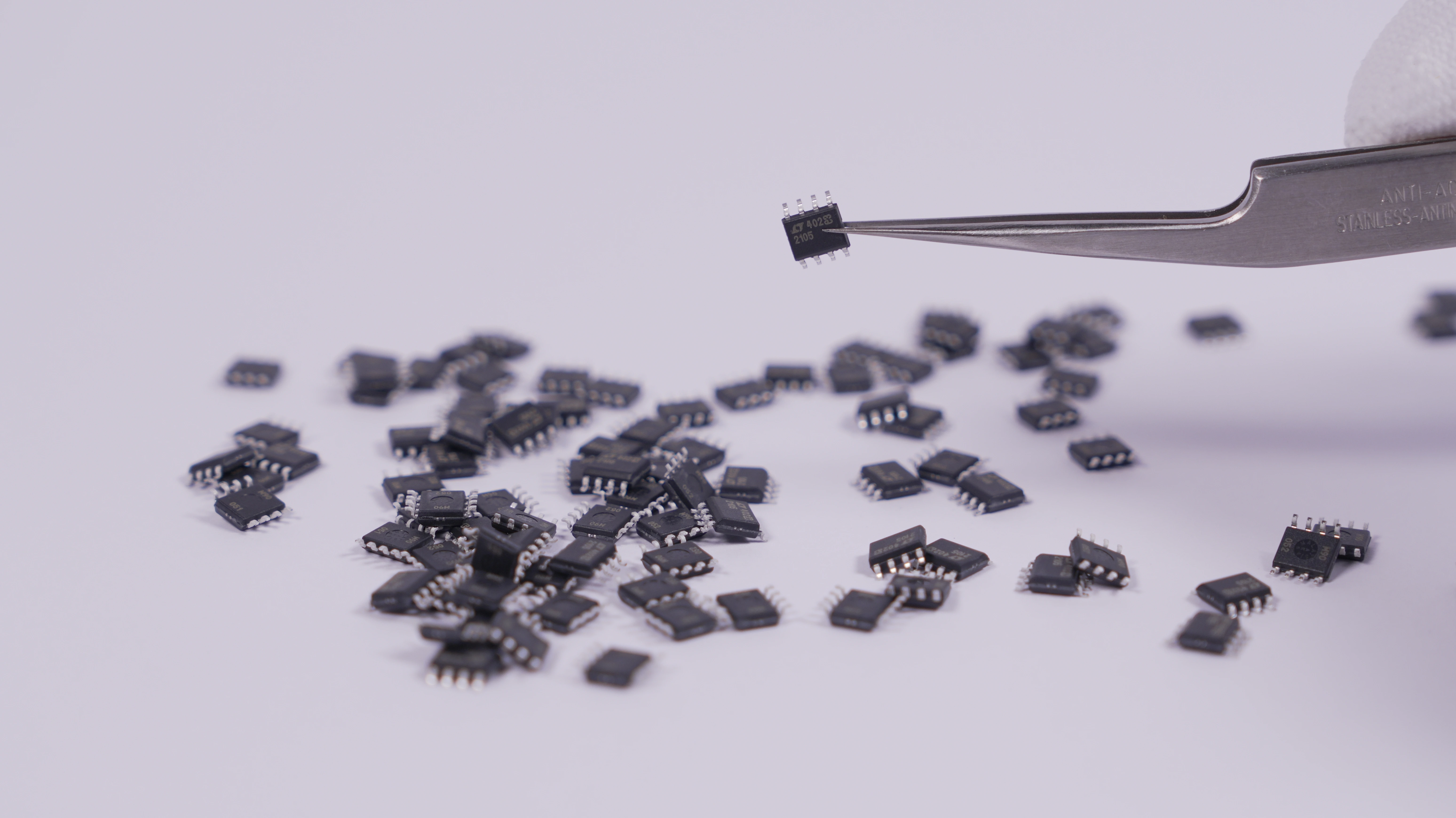

Integrated circuits (ICs)
While discrete devices like diodes and transistors perform individual functions, modern electronics increasingly depend on highly integrated devices that combine many of these functions into a single package. These are known as integrated circuits (ICs). Integrated circuits are miniaturized electronic circuits fabricated onto a single piece of semiconductor material (usually silicon) that contain multiple interconnected components such as transistors, resistors, capacitors, and diodes. They come in a wide variety of SMD packages, including:
- Small outline IC (SOIC)
- Thin shrink small outline package (TSSOP)
- Quad flat pack (QFP)
- Quad flat no-lead (QFN)
- Ball grid array (BGA)
Conclusion
As SMT assembly continues to advance alongside Industry 4.0 initiatives, component packages are becoming finer-pitch, higher-density, and more integrated. These trends enable even more compact, customizable, and sophisticated electronic systems.
If you’re interested in learning more about SMT assembly, check out the following resources:
References
[1] Liu, S., Yan, Y., Zhou, Y., Han, B., Wang, B., Zhang, D., Xue, S., Wang, Z., Yu, K., Shi, Y., & Wang, C. (2022). Thermal Induced Interface Mechanical Response Analysis of SMT Lead-Free Solder Joint and Its Adaptive Optimization. Micromachines, 13(6), 908. https://doi.org/10.3390/mi13060908.
[2] Tian, W., Ding, Y., Du, X., Li, K., Wang, Z., Wang, C., Deng, C., & Liao, W. (2023). A Review of Intelligent Assembly Technology of Small Electronic Equipment. Micromachines, 14(6), 1126. https://doi.org/10.3390/mi14061126.
